Orbital Floor Machines

1-Doodle Scrub® EBG-9

1-Carry Strap

1-Blue Driver Pad

1-Handle Trigger





shop.cleansolutions.us

Doodle Scrub® EBG-9

 The Doodle Scrub® EBG-9 by Square Scrub® is our most compact machine. Just because it’s small doesn't mean it isn't powerful. The Doodle Scrub packs just as much punch as our bigger EBG machines, but with small exception - THE DOODLE SCRUB GOES WHERE OUR BIGGER MACHINES CAN'T. At 22 pounds, the Doodle Scrub® delivers nearly the same pounds per square inch as the EBG-20/C.



  The Doodle Scrub® was created and designed specifically for those out of reach areas that our bigger Square Scrub machines can't reach. Square Scrub's NEW patent pending EBG-9 handle innovation gives you not just ONE but TWO ways to attach the handle to the base, giving this machine and its user maximum VERSATILITY2®.



  The Doodle Scrub® is perfect for cleaning and preparing floors around toilets, bathroom stalls and similar tight spaces where larger machines can't reach. The Doodle Scrub is also great for cleaning stairs, VCT, tile & grout, rubberized flooring, and much, much more.

Machine Specs                EBG-9

• CAE/ETL/CE Certified

• Base Weight w/o Handle - 20lbs

• Total Assembled Weight - 23lbs

• 10 Gauge Powder Coated Steel Frame

• 4,100 rpm

• 50 db Operating Sound Output

• 30' - 18 Gauge Power Cord

• 1.2 amp draw

• 5.25 x 10.5 Pad Size

• 4 - 1-1/4" Isolators

• 4,100 Oscillations per minute

• Vibration Reducing Isolated Handle

• Stone Care Capable



shop.cleansolutions.us

This complete Doodle Scrub® Package includes:



• Doodle Scrub® EBG-9 with carry strap

• Handle Trigger

• Doodle Skate

• 4 Blue Driver Pads

• 4 White Driver Pads

• 2 SHO Pads

• 4 SQP Pads

• 1 White Pad

• 2 Tile & Grout Pads

• 1 Xtreme Sponge





shop.cleansolutions.us

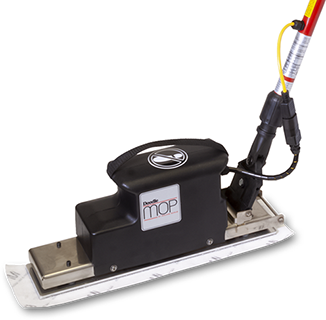

Doodle Mop



• Designed for everyday floor mopping.

• Improves soil removal.

• 4000 rpm motion drastically improves cleaning vs hand

     mopping.

• Works with 16” & 18” disposable microfiber mops.

• 3-position handle for operator comfort.

•  Includes Carry Strap & Handle Trigger.

•  Doodle Mop weighs 12lbs with a 35’ power cord.

• 304 series stainless steel base.

• Easy to clean & maintain.



Machine Specs        EBG-16

• CAE/ETL/CE Certified

• Total Assembled Weight - 12lbs

• 10 Gauge Powder Coated Steel Frame

• 4,100 rpm

• 59 db Operating Sound Output

• 30' - 18 Gauge Power Cord

• 1.3 amp draw

• 5.25 x 16 Pad Size

• 4 - 1-1/4" Isolators

• 4,100 Oscillations per minute





shop.cleansolutions.us

EBG-20/C PIVOT

  The EBG-20/C PIVOT Surface Preparation Machine

features a smooth 3450 rpm motor, 50-foot, 14 gauge power cord with lighted hospital grade plug, removable weights and Dust Containment Kit. The 6" x 2"

non-marking ball bearing wheels are coupled with a 3/4" axle for greater mobility. The new Square Scrub Pivot includes a pivoting head for balanced contact & easier control. The pivoting head releases the control handle from the bottom of the base, allowing the machine to pivot freely front to back. This pivoting motion follows uneven floors more efficiently.

Machine Specs            EBG-20/C

• UL/CSA/CE Certified

• Base Weight w/o Weights - 70lbs

• Total Assembled Weight - 164lbs

• Maximum Weight Capacity - 329 lbs

• 10 Gauge Powder Coated Steel Frame

• 7 Gauge Stainless Steel Base

• 3/4" Solid Steel Axle

• Adjustable Handle

• 6"x2" Non-Marking Wheels

• 3450rpm / 1.5 hp Motor

• 69db Operating Sound Output

• 50ft / 14 Gauge Power Cord

• Lighted Plug

• Amp Draw - 7amps

• 14x20 Pad Size

• 4 Isolators

• 3,450 Oscillations / minute

• Removable / Slotted Weights

• Vibration Reducing Handle

• Noise Reducing Weight Spacers

• Stone Care Capable

• Carpet & Rug Institute Certified

• Dust Containment Kit

• Optional Built-in Hour Meter

• Optional Two-Piece Handle









shop.cleansolutions.us

EBG-20/CV PIVOT

  The EBG-20/CV is a standard EBG-20/C PIVOT Floor Preparation Machine with the HEPA Dry Vac installed.



  The HEPA Dry Vac has a 6 quart capacity and pulls under 4.5 amps. This allows the user to tap into the power source at the Square Scrub motor, eliminating the need for extension cords.



  The HEPA Dry Vac Kit mounts directly to the machine with a universal mounting bracket. In conjunction with the Dust Containment Kit, the Dry Vac Kit significantly reduces airborne particles. This is NOT designed to remove the debris from the floor.





shop.cleansolutions.us

EBG-28 PIVOT

  Powerful, heavy, and durable, the EBG-28 PIVOT Surface Preparation Machine features a smooth 3450 rpm motor, 50-foot, 14 gauge power cord with lighted hospital grade plug, removable weights and Dust Containment Kit. The 6" x 2" non-marking ball bearing wheels are coupled with a 3/4" axle for greater mobility. The new Square Scrub Pivot includes a pivoting head for balanced contact & easier control. The pivoting head releases the control handle from the bottom of the base, allowing the machine to pivot freely front to back. This pivoting motion follows uneven floors more efficiently.

Machine Specs              EBG-28

• UL/CSA/CE Certified

• Base Weight w/o Weights - 81lbs

• Total Assembled Weight - 216lbs

• Maximum Weight Capacity - 216 lbs

• 10 Gauge Powder Coated Steel Frame

• 7 Gauge Stainless Steel Base

• 3/4" Solid Steel Axle

• Adjustable Handle

• 6"x2" Non-Marking Wheels

• 3450rpm / 1.5 hp Motor

• 69db Operating Sound Output

• 50ft / 14 Gauge Power Cord

• Lighted Plug

• Amp Draw - 9.6amps

• 14x28 Pad Size

• 8 Isolators

• 3,450 Oscillations / minute

• Removable / Slotted Weights

• Vibration Reducing Handle

• Noise Reducing Weight Spacers

• Dust Containment Kit

• Optional Built-in Hour Meter

• Optional Two-Piece Handle



shop.cleansolutions.us

The EBG-28/V PIVOT

  The EBG-28/V is a standard EBG-28 PIVOT Floor Preparation Machine with the HEPA DryVac installed.



  The HEPA Dry Vac has a 6 quart capacity and pulls under 4.5 amps. This allows the user to tap into the power source at the Square Scrub motor, eliminating the need for extension cords.



  The HEPA Dry Vac Kit mounts directly to the machine with a universal mounting bracket. In conjunction with the Dust Containment Kit, the Dry Vac Kit significantly reduces airborne particles. This is NOT designed to remove the debris from the floor.
